TLS Handshake Inspection

Kubeshark’s TLS handshake dissector (tlsx) captures and displays TLS ClientHello and ServerHello messages from every connection in your cluster. Because the TLS handshake is unencrypted by design, this works without any eBPF TLS hooks or decryption — it simply reads the plaintext handshake bytes from the wire.

This is different from TLS Decryption, which decrypts the application data inside the encrypted tunnel. Handshake inspection shows the negotiation metadata: who is connecting where, which TLS version and cipher suite are being used, and what the client advertises.

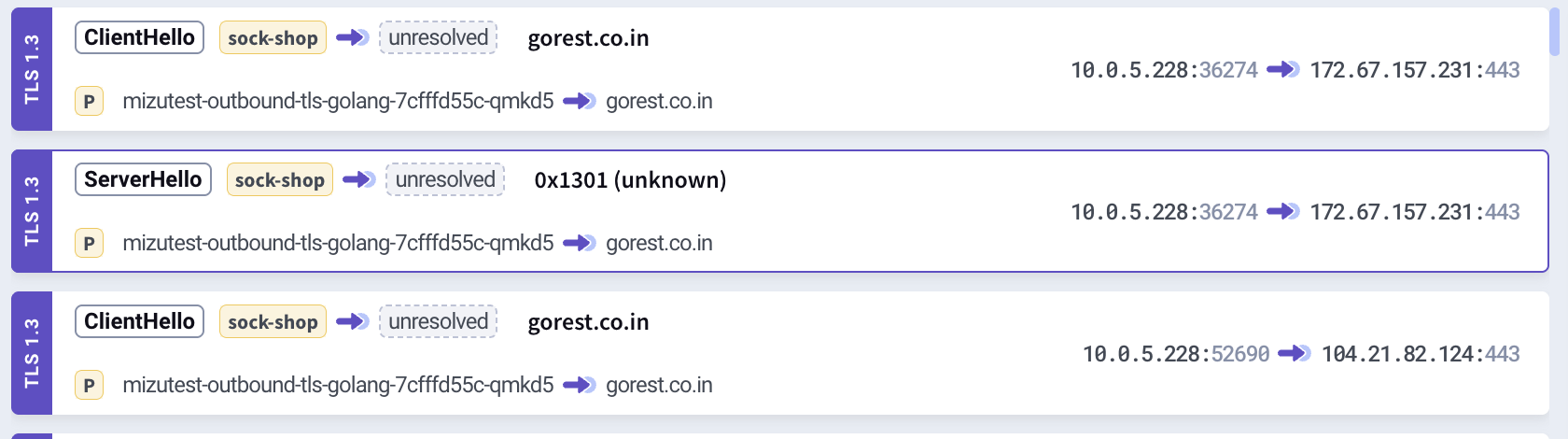

TLSX - Handshake

What You Can See

Every TLS connection begins with a handshake. Kubeshark captures both sides:

ClientHello — what the client offers:

SNI (Server Name Indication) — the hostname the client is connecting to
Cipher suites — the list of encryption algorithms the client supports
ALPN — application-layer protocol negotiation (e.g., h2, http/1.1)
TLS version — the maximum version the client supports
Extensions — all TLS extensions present
JA3 fingerprint — a standard hash that uniquely identifies the client’s TLS stack

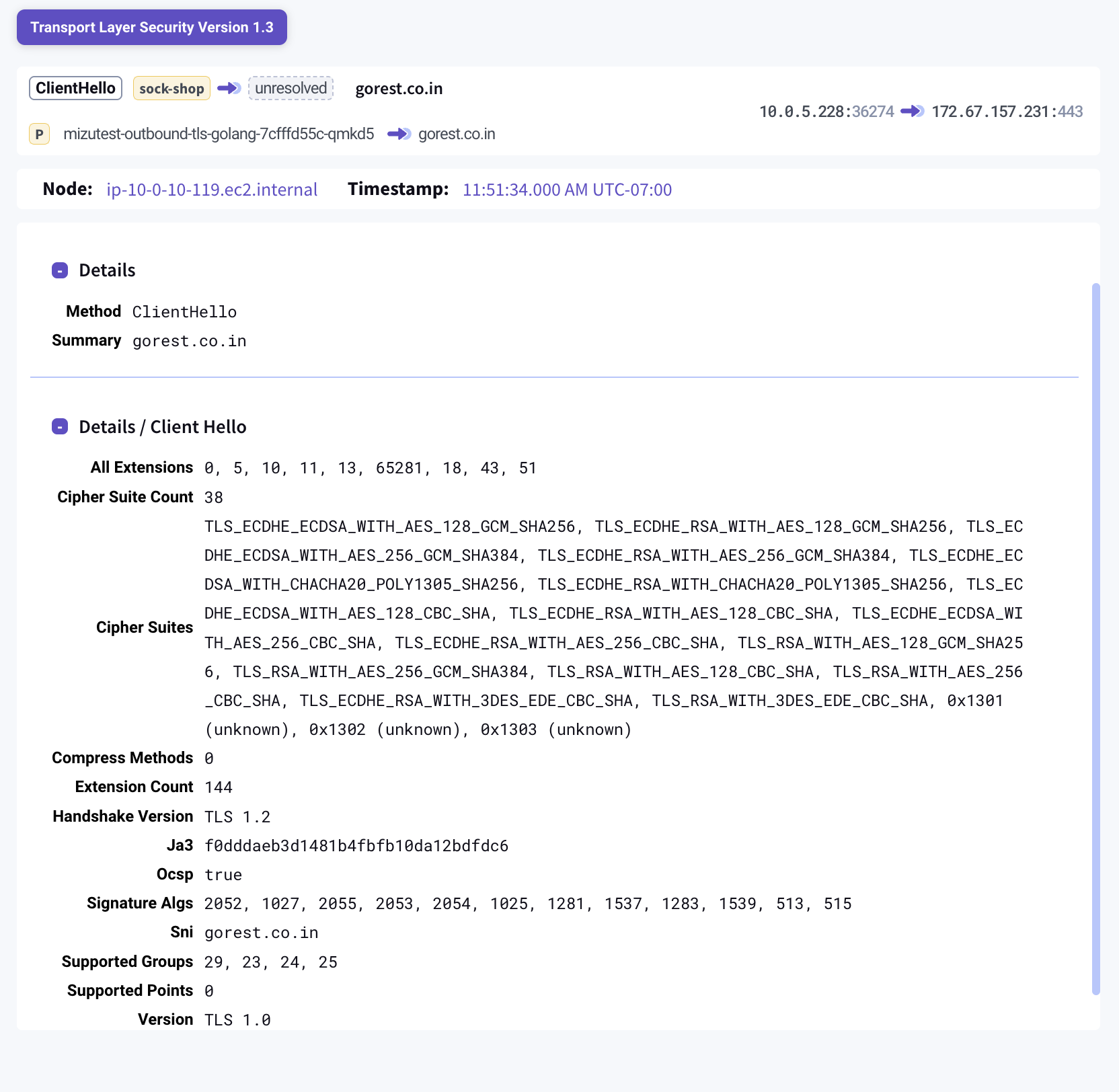

TLSX - Client Hello

ServerHello — what the server negotiated:

Cipher suite — the encryption algorithm selected by the server
Negotiated version — the TLS version both sides agreed on
ALPN protocol — the selected application protocol
JA3S fingerprint — a standard hash that uniquely identifies the server’s TLS response

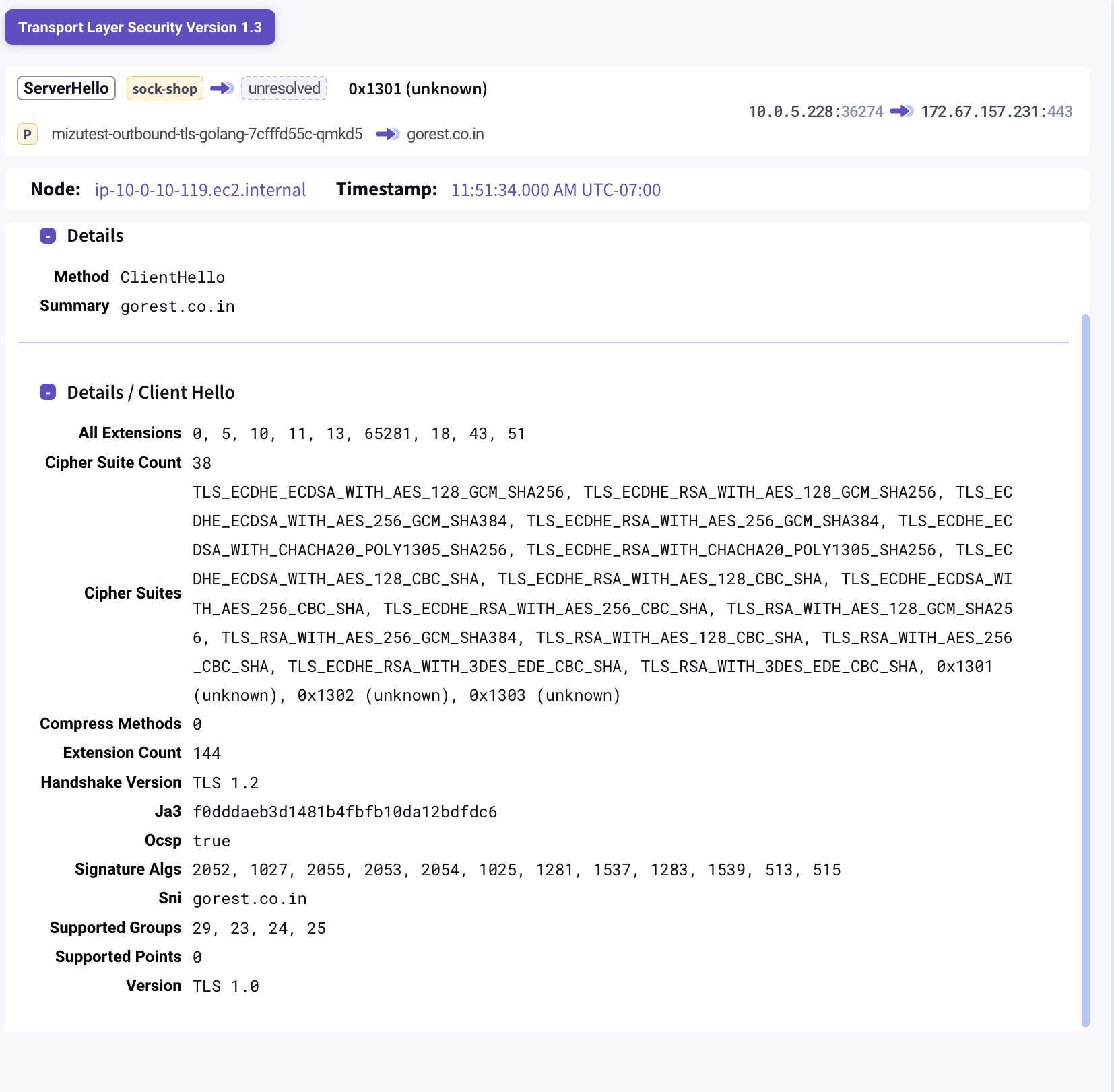

TLSX - Server Hello

Security Auditing

The dissector includes a built-in security assessment that flags insecure configurations:

Deprecated TLS versions — SSL 3.0, TLS 1.0, and TLS 1.1 are flagged per RFC 8996
Weak cipher suites — RC4, DES, NULL, EXPORT, and anonymous ciphers are flagged

When a ServerHello negotiates an insecure configuration, a Security section appears in the entry details with specific warnings.

Egress Monitoring via SNI

The SNI field in ClientHello reveals what external hostnames your pods are connecting to — without decrypting any traffic. This is valuable for:

Detecting unexpected outbound connections to unknown domains
Verifying that workloads only connect to approved external services
Monitoring egress patterns across namespaces

SNI is set when clients connect using a hostname. Internal Kubernetes traffic that connects by ClusterIP typically does not include SNI. For internal east-west visibility, use TLS Decryption instead.

JA3 Fingerprinting

JA3 is an industry-standard method for fingerprinting TLS clients and servers. Kubeshark computes JA3 (from ClientHello) and JA3S (from ServerHello) automatically.

JA3 fingerprints are useful for:

Threat detection — known malware families have well-documented JA3 hashes
Client identification — different applications produce different JA3 hashes, even when connecting to the same server
Anomaly detection — unexpected JA3 hashes in a namespace may indicate a compromised workload

Filtering TLS Handshake Entries

Use tlsx in the KFL filter box to see all TLS handshake entries:

tlsx

Combine with other fields for targeted analysis:

tlsx && src.pod.namespace == "production"

tlsx && tlsx_sni.contains("amazonaws.com")

tlsx && tlsx_cipher_suites.exists(s, s.contains("RC4"))

Available KFL Variables

Variable	Type	Description
`tlsx`	bool	TLS handshake entry (ClientHello or ServerHello)
`tlsx_sni`	string	Server Name Indication hostname
`tlsx_cipher_suite`	int	Negotiated cipher suite ID (from ServerHello)
`tlsx_cipher_suites`	[]string	Offered cipher suite names (from ClientHello)
`tlsx_alpn`	string	Negotiated ALPN protocol
`tlsx_version`	int	Negotiated TLS version from ServerHello
`tlsx_summary`	string	Entry summary (SNI, ALPN, or cipher suite name)
`tlsx_info`	string	Entry method (`ClientHello` or `ServerHello`)

The tls filter (without the x) is different — it matches traffic captured via eBPF TLS interception (decrypted HTTPS, Redis, etc.). Use tlsx for TLS handshake entries.

How It Works

The TLS handshake happens in plaintext before the encrypted tunnel is established. Kubeshark’s worker captures these packets via AF_PACKET or eBPF and parses the ClientHello and ServerHello messages according to the TLS specification (RFC 5246, RFC 8446).

No special configuration is needed — handshake inspection is enabled by default whenever Kubeshark is running.
