Display Filters (KFL2)

Kubeshark Filter Language 2 (KFL2) is the display filter system introduced in V2.00. It uses Common Expression Language (CEL) to provide powerful, flexible filtering of captured network traffic.

Display filters only affect what is shown in the dashboard. They do not impact which traffic is captured. For controlling what traffic is captured, see Capture Filters.

Using Display Filters

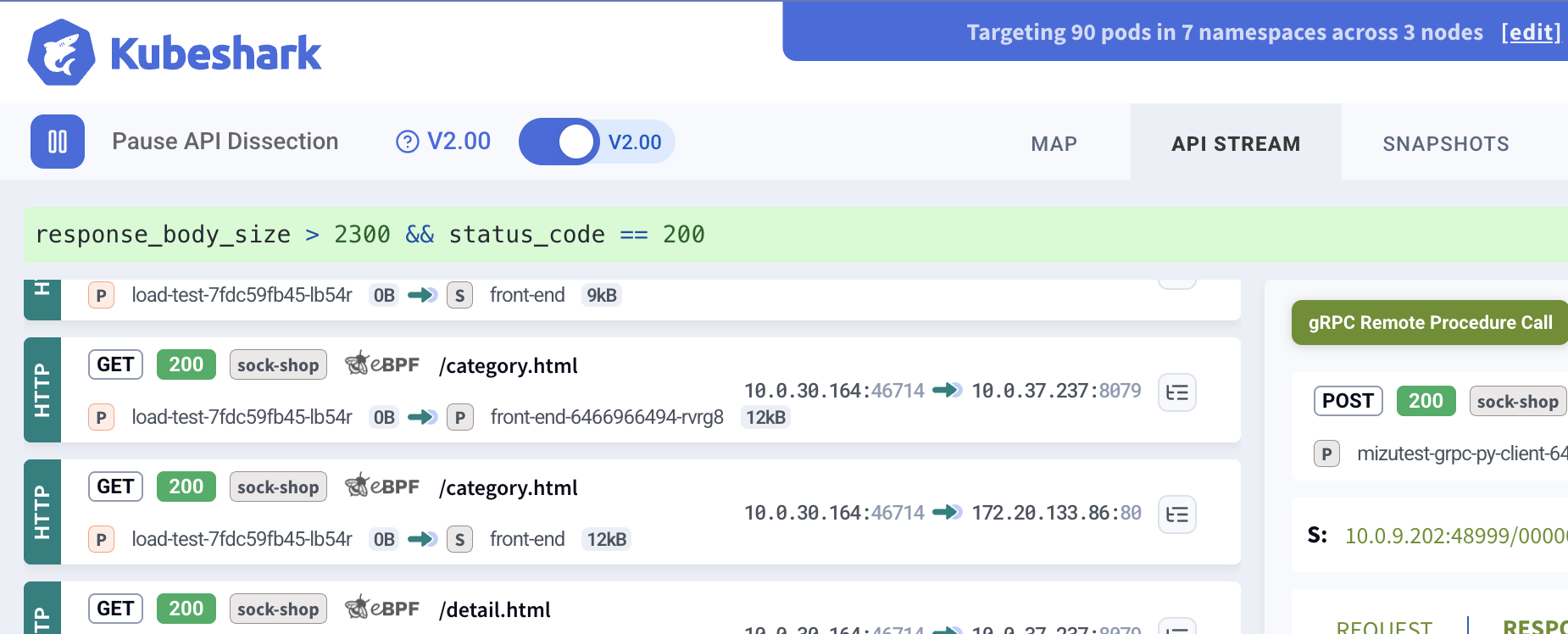

Enter your KFL2 filter expression in the filter input box at the top of the dashboard:

Building Filters with Click-to-Add

Every element visible in the dashboard has a green + button that can be clicked to automatically add filter expressions. This helps build complex filtering statements without typing.

Clicking the + button next to any value adds the corresponding filter expression (e.g., status_code == 200) to the filter input.

Once a filter is applied, only traffic matching the filter statement flows from the distributed Workers to the Hub to the Dashboard, reducing noise and focusing on relevant traffic.

Quick Examples

# HTTP GET requests with errors
http && method == "GET" && status_code >= 400

# Traffic to a specific namespace
dst.pod.namespace == "production"

# DNS queries for specific domains
dns && "google.com" in dns_questions

# Large HTTP responses
http && response_body_size > 10000

Supported Variables

Network-Level Variables

Kubernetes Variables

Labels and Annotations

Protocol Detection

Use these boolean variables to filter by protocol:

HTTP Variables

DNS Variables

TLS Variables

Redis Variables

Kafka Variables

Timestamp Variables

Filter Examples

Basic Network Filtering

# Filter by destination port
dst.port == 80

# Filter by IP address prefix
src.ip.startsWith("192.168.")

# Filter by multiple ports
dst.port == 80 || dst.port == 443 || dst.port == 8080

# Port range
dst.port >= 8000 && dst.port <= 9000

Kubernetes Filtering

# Traffic from a specific pod
src.pod.name == "web-server-123"

# Traffic to a specific namespace
dst.pod.namespace == "production"

# Inter-service communication
src.service.name == "api-gateway" && dst.service.name == "user-service"

# Traffic involving production namespace
"production" in namespaces

# Filter by pod labels
local_labels.app == "payments" || remote_labels.app == "payments"

# Filter by process name
local_process_name == "nginx"

HTTP Filtering

# GET requests
http && method == "GET"

# API endpoints
http && url.contains("/api")

# Client errors (4xx)
http && status_code >= 400 && status_code < 500

# Server errors (5xx)
http && status_code >= 500

# Specific header present
http && "authorization" in request.headers

# Header value match
http && request.headers["content-type"] == "application/json"

# URL pattern matching
http && url.matches(".*/api/v[0-9]+/.*")

# Large responses
http && response_body_size > 1000000

DNS Filtering

# DNS requests only
dns && dns_request

# Specific domain queries
dns && "google.com" in dns_questions

# DNS responses with answers
dns && dns_response && size(dns_answers) > 0

Database Filtering

# Redis GET commands
redis && redis_type == "GET"

# Redis key pattern
redis && redis_key.startsWith("session:")

# Large Kafka messages
kafka && kafka_size > 10000

# Large Redis responses
redis && redis_response_size > 8192

Complex Filters

# HTTP API requests from internal network
src.ip.startsWith("192.168.") && http && method == "POST" && url.contains("/api")

# Error conditions across protocols
http && status_code >= 500 || (tcp && tcp_error_type != "")

# Production namespace with HTTP errors
src.pod.namespace == "production" && http && status_code >= 400

# Cross-namespace communication
src.service.namespace != dst.service.namespace

# Time-based filtering
timestamp > timestamp("2024-11-14T22:00:00Z")

# Recent traffic (last 5 minutes)
elapsed_time <= 300000000

CEL Language Reference

KFL2 uses Common Expression Language (CEL) syntax.

Operators

String Functions

Collection Functions

Examples

# String operations
url.contains("/api")
src.ip.startsWith("10.")
url.matches(".*\\.(jpg|png|gif)$")

# Collection operations
"production" in namespaces
size(dns_questions) > 1
request.headers["content-type"]

# Map key checking
"authorization" in request.headers

Performance Tips

1. Use protocol detection first - More efficient to check http && before checking HTTP-specific fields
2. Port filtering is fast - dst.port == 80 is very efficient
3. Prefer startsWith/endsWith over contains for prefix/suffix matching
4. Empty filters match all - An empty filter string matches all traffic

KFL2 vs Capture Filters

For those familiar with Wireshark, KFL2 is analogous to Wireshark’s Display Filters, while Capture Filters are analogous to Wireshark’s BPF filters.
